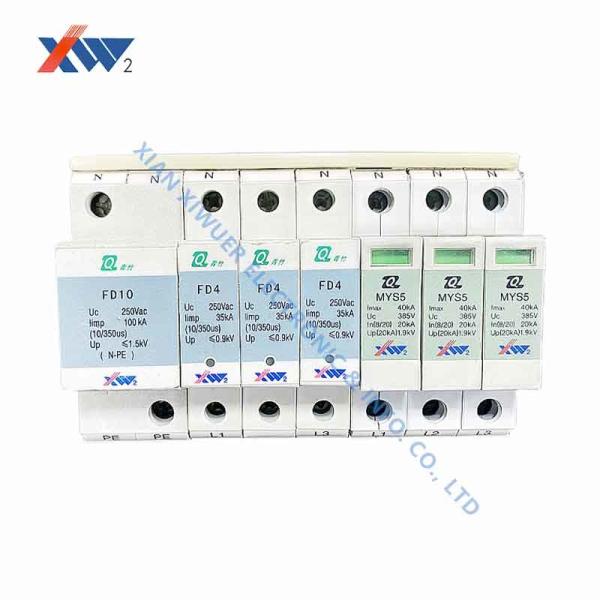

    250V 35KA FYBC Surge Protective Device Power Lightning Arresting

    Ask Lasest Price
    Brand Name : Qing Zhu
    Model Number : FYBC/3+1-100
    Certification : UL,TUV,CCC,ROHS
    Price : USD, Negotiable, unit
    Payment Terms : L/C, T/T
    Supply Ability : 4,000,000 units/year
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    250V 35KA FYBC Surge Protective Device Power Lightning Arresting

    250V 35KA FYBC 250/3+1 100 Power Surge Protector assmbled lightning arresting products combined with AEC Class B and C

    Features

    • Great absorbing capability, low clamping voltage, with the Max. surge current of up to 100KA (10/350 s)
    • Autogeneous ignition technology is adopted to realize the harmonious interaction between Class B and C. The operating current has no any effect on the circuit operation.(without decoupler)
    • Decoupler is no need to be installed between Class B and C, which save spaces greatly.
    • Fast response (≤1 μs)

    • Class B product has the function of power indicating, which can monitor the working conditions of the spark gap.

    • Class C plug-in type protector is available with failure window indicator, on which green shows normal and red failure.

    • Provide remote indicator contacts to realize central indication control.

    • 7 standard modules can be easily mounted on the 35mm rails.

    Application


    FYBC/3+1-100 Type Over-voltage Protector is an assmbled lightning arresting products combined with AEC Class B and C, which is widely applied in the power supply system in buildings and plants that are sensitive to lightening strike.


    Technical parameters


    Technical ParametersL1/L2/L3-NN-PE
    Max. Continuous Operating Voltage Uc(Ac)250Vac255 Vac
    Max. Impulse Current limp (10/350μ s)35KA100KA
    Energy625KJ/Ω2.5 MJ/Ω
    Current blocking ability3KA100A
    Protection level Up0.9KV1.5KV
    Alarm contacts2-3 always close 1-3 always open
    Response time< 1 μ S
    External Dimensions(mm)145× 90×67( reference)
    Installation PatternMounted on 35mm width standard rails

    Notes: The cross sectional area of grounding wire should be no less than 25.0mm2,and that of zero wire should be no less than 16.0mm2 , remote alarm wire of Max 1.5mm2.


    COMPANY OVERVIEW


    Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city cover in an area of 4000 , with employees of 2300, and about 580 technicians, amongthem, there are 135 engineers, 21 senior engineers. The company has total assets of 315 million RMB Yuan, fixed assets of 137 million RMB Yuan, which is a large enterprise mainly engaged in producing electronic components. The company has the largest production scale of Varistor,SPD( Surge Protective Device)and HV Ceramic Capacitor in China, with the following main products :

    1. Varistors & SPD

    2. HV Ceramic Capacitor
    3. Capacitive Voltage Divider

    4. Thermistor

    The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland etc. The annual production capacity of the two leading products has been reached to 5 million pcs and 150 million pcs respectively, with the market holding rate in China of about 10% and 30% respectively by continually technical innovation. Varistors and SPD produced by the company enjoyed great reputation in the international market, being exported to many countries and areas such as Japan,USA, Hong Kong etc., with the customers like India and GE in USA. are already sold to LG company in Korea with large quantity, and also to Spainand India etc.

    Not only the products quality and technical capacity, but also the completeness of the models are all in the leading place in China. The main products have got CCEE, UL, VDE & TUV approval. The quality system was set up according to the requirement of ISO9000 since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then got ISO9001 certification by British organization in 2000, by then we are both the first one who are approved by ISO9000 certification in the North-west area of China and the same occupation. We passed all the successive periodical audit and smoothly get the new certificate registered in Holland in Aug.1997; the quality system is strengthened and completed constantly. And we also got ISO18000 certificate.

    We believe we are able to supply satisfied goods and service to customers home and abroad with the most reasonable price and the shortest delivery time, on basis of our excellent quality assurance capacity, technical development capacity and rich manufacturing experiences.
