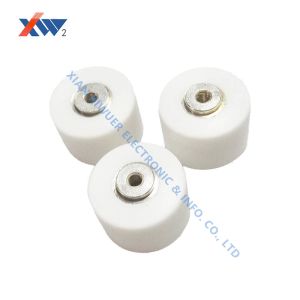

    Buy cheap High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering from wholesalers

    Buy cheap High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering from wholesalers
    • Buy cheap High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering from wholesalers
    • Buy cheap High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering from wholesalers
    • Buy cheap High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering from wholesalers

    High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering

    Ask Lasest Price
    Brand Name : XIWUER
    Model Number : CT8-2-200KV-600pF
    Certification : ISO9001,ISO14001,ISO45001
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 4,000,000 pcs a year
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering

    High Voltage Doorknob Capacitor product image

    No.SpecificationDissipationWithstanding voltageInsulation resistanceDimension(mm)
    120kV-2000pF








    ≦0.0040








    1.5Ur 1min








    ≧1.0×105MΩ

    DHLDM
    220kV-10000pF451923125
    320kV-18000pF651519125
    430kV-1000pF801725125
    530kV-2700pF452432124
    630kV-12000pF602028124
    740kV-150pF20334184
    840kV-500pF28334184
    940kV-7500pF802429126
    1040kV-10000pF802226165
    1150kV-1000pF503034124
    1250kV-1000pF322731165
    1350kV-5600pF803135165
    1460kV-1500pF503134125
    1560kV-3000pF653235165
    16100kV-500pF505458125
    17100kV-2000pF513235165
    18Insulator type 100kV-1500pF683640165
    19150kV-820pF6595100125
    20200kV-600pF509094165

    System Integration - The Role of Voltage Dividers in Smart Substations
    In smart substations, capacitive voltage dividers serve not only as measurement units but also as signal sources for relay protection and metering equipment. The electromagnetic compatibility design of door handle capacitors (such as shielded electrodes and sealed packaging) protects against EMI interference caused by switching operations, outputting a pure voltage signal. For example, in the State Grid "One-Button Sequential Control" project, voltage dividers use capacitor voltage division to obtain bus voltage. The long-term stability of the door handle capacitors (annual capacitance change <0.1%) ensures accurate timing determination of disconnector opening and closing.

    High Voltage Doorknob Capacitor application diagram
    High Voltage Doorknob Capacitor technical illustration
    High Voltage Doorknob Capacitor installation example
