    Customized High Voltage Doorknob Capacitors for UHV Measurement and Pulse Applications with 20kV-2000pF 30kV-1000pF 40kV-150pF Specifications

    Ask Lasest Price
    Brand Name : XIWUER
    Model Number : CT8-2-150kV-820pF
    Certification : ISO9001,ISO14001,ISO45001
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 4,000,000 pcs a year
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    Customized High Voltage Doorknob Capacitors for UHV Measurement and Pulse Applications with 20kV-2000pF 30kV-1000pF 40kV-150pF Specifications

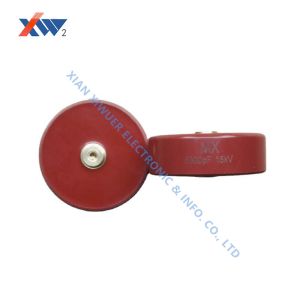

    High Voltage Doorknob Capacitor product image

    No.SpecificationDissipationWithstanding voltageInsulation resistanceDimension(mm)
    120kV-2000pF








    ≦0.0040








    1.5Ur 1min








    ≧1.0×105MΩ

    DHLDM
    220kV-10000pF451923125
    320kV-18000pF651519125
    430kV-1000pF801725125
    530kV-2700pF452432124
    630kV-12000pF602028124
    740kV-150pF20334184
    840kV-500pF28334184
    940kV-7500pF802429126
    1040kV-10000pF802226165
    1150kV-1000pF503034124
    1250kV-1000pF322731165
    1350kV-5600pF803135165
    1460kV-1500pF503134125
    1560kV-3000pF653235165
    16100kV-500pF505458125
    17100kV-2000pF513235165
    18Insulator type 100kV-1500pF683640165
    19150kV-820pF6595100125
    20200kV-600pF509094165

    Customized Solutions - UHV Measurement and Pulse Applications
    UHV (Ultra-High Voltage) power grids and pulse power measurement place extreme demands on voltage dividers:

    DC transmission voltage dividers require capacitors with extremely high insulation resistance (≥10^5 MΩ) to suppress drift caused by DC leakage.

    Surge voltage dividers require nanosecond response and low inductance to accurately capture the full lightning wave (1.2/50μs) or chopped wave (2-5μs). By using customized doorknob capacitors (e.g., 500kV voltage, 500pF ±5%, ESL <15nH), the ZSRCF series voltage dividers can achieve AC ±1.5% and DC ±0.5% measurement accuracy, replacing high-voltage electrostatic voltmeters.

    High Voltage Doorknob Capacitor application diagram
    High Voltage Doorknob Capacitor technical illustration
    High Voltage Doorknob Capacitor installation example
